Explore our robust 4 Axle Fuel Tanker Trailer, engineered for high-volume logistics with a substantial 55-cubic-meter capacity. Designed for efficiency and reliability, it is an ideal solution for transporting fuels like diesel, making this diesel tanker trailer a cost-effective asset for your fleet. A standard bottom-mounted safety valve ensures enhanced operational protection. While built for liquids, our expertise extends to dry bulk solutions, including the specialized Cement Tank Trailer. We pride ourselves on combining superior quality with competitive pricing and fast delivery.
| Overall (L*W*H) | 13000×2500*3800mm |
| Volume | 55000Liter |
| Load Capacity | 55t |
| Axle | 4Axle, 13T |
| Tire Number | 17 |
| Color | Customized |

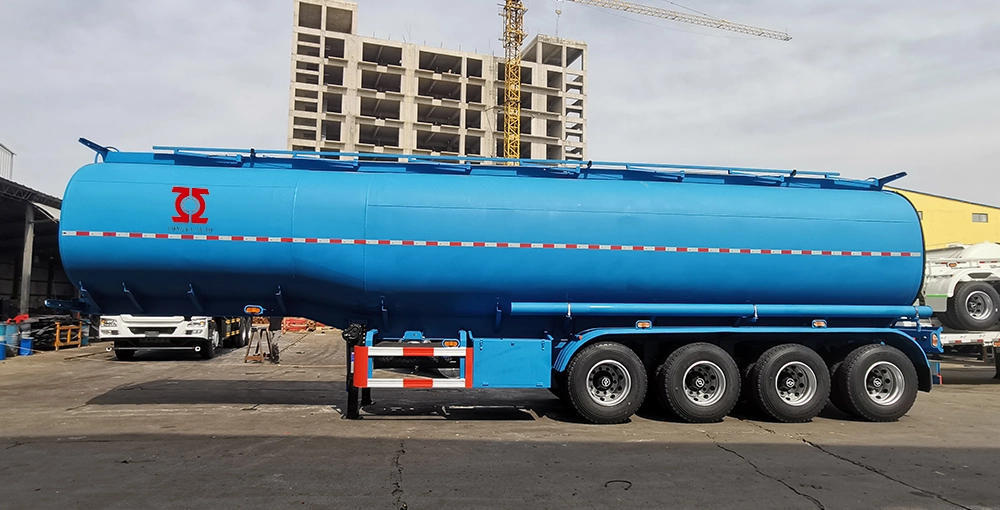

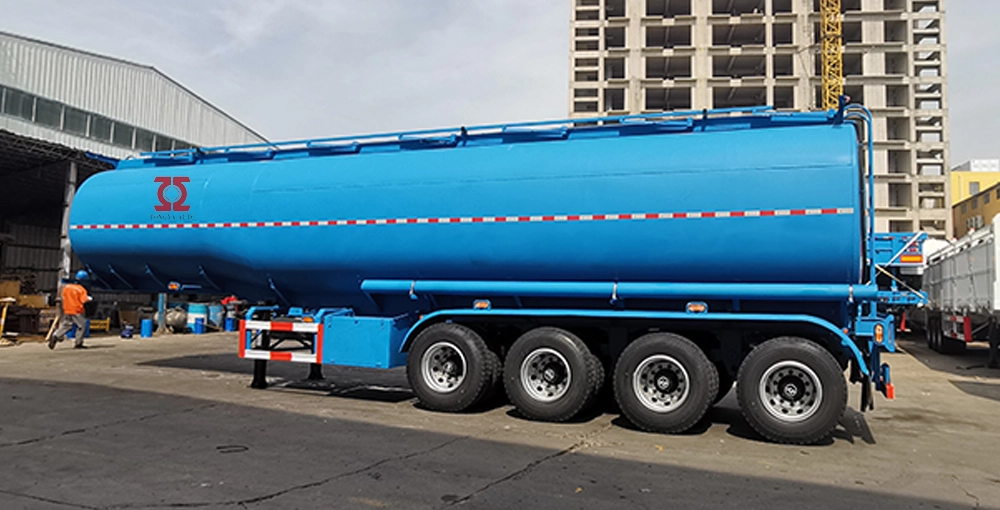

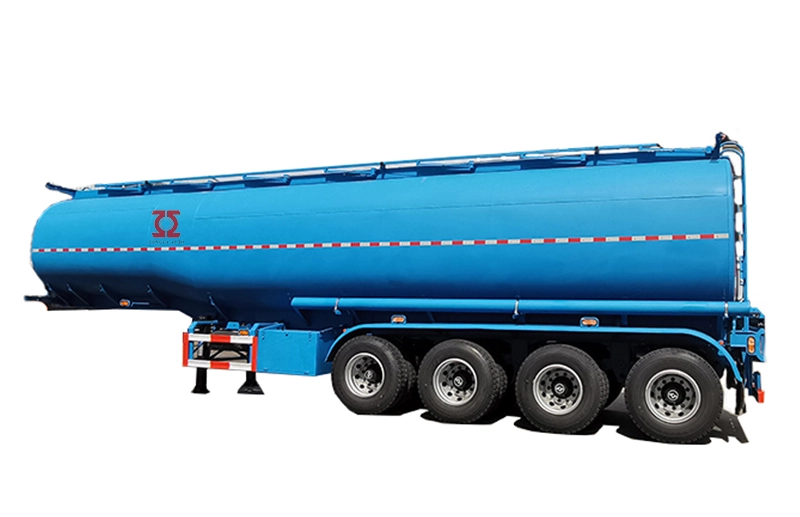

4 Axle Fuel Tanker Trailer
| Product Name | 4 Axle Fuel Tanker Trailer | ||
| Tare Weight | About 12T | ||
| Dimension( The exact size depends on final design) | Length:13200 mm (outside dimension) | ||
| Width: 2500 mm ( outside dimension) | |||
| Height: 3850mm (outside dimension) | |||
| Tank Assembly | Front/Rear end plate | Material | Q345 Steel |
| Thickness | 6mm | ||
| Tank Body | Material | Q345 Steel | |
| Thickness | 5mm | ||
| Compartment | 5 compartment | ||
| Manhole Cover | Diameter | diameter 500mm | |
| Material | steel | ||
| Number | 5pcs | ||
| Discharging Valve | Diameter | 3 inch | |
| Material | Euro Standard Valve | ||
| Number | 5pcs | ||
| Bottom Safety Valve | 5 pcs with Pneumatic controller | ||
| Discharging Pipe | Diameter | 3 inch | |
| Type | Rubber hose, 2pcs | ||
| Cat Walk | Standard type | ||
| Running mechanism | Axle | Brand | BPW |
| Type | 13T | ||
| Number | 4 pcs(front axle can be lifed) | ||
| Tyre | Type | 12R22.5 | |
| Number | 17pcs(Including 1 spare tyre) | ||
| Suspension | Front axle with air suspension . American type mechanical suspension for 3 axle, | ||
| Spring leaf | Leaf width | 90mm | |
| Leaf thickness | 13mm | ||
| Layer/ set | 10 Layer | ||
| Kingpin | Brand | JOST brand | |
| Type | Bolts type | ||
| Diameter | 3.5 inch | ||
| Brake system | Air tank | 45L air tanks | |
| Brake chamber | Six double and 2 single Spring brake | ||
| Emergency | Wabco | ||
| ABS | With | ||
| Landing gear | Brand | JOST brand | |
| Accessories | Spare tyre carrier | 2 set | |
| Light | LED light | ||
| Voltage | 24V | ||
| Receptacle | 7 ways (7 wire harness) and quick change type | ||
| Toolbox | One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) | ||
| Painting | color advised by client | ||
Premium 4 Axle Fuel Tanker Trailer: Engineered for Safety & Versatility
Our advanced 4-axle 55000-liter fuel tanker semi-trailer incorporates cutting-edge safety technologies to ensure secure transportation of petroleum products. Featuring:
Thermal Insulation System: Triple-layer polyurethane foam insulation maintains optimal fluid temperature, preventing vaporization in extreme heat (up to 50°C) and freezing in sub-zero conditions (-30°C).
Anti-Sloshing Baffles: 18 compartmentalized chambers with wave-dampening baffles reduce liquid surge by 92%, enhancing road stability even on mountainous terrain.
Climate-Adaptive Design: Corrosion-resistant aluminum alloy construction with Arctic-grade rubber seals performs reliably across desert, tropical, and snowy environments.
Smart Monitoring: Optional IoT-enabled sensors provide real-time tracking of pressure, temperature, and GPS location via 4G network.
Certified by UN ECE R110 and DOT-406 standards, this tanker achieves 15% better fuel efficiency through aerodynamic contours and lightweight yet durable materials. Ideal for long-haul fuel logistics across diverse regions.
55000L 4 Axle Fuel Tanker Trailer | Explosion-Proof & Leakage-Free Design
Engineered with dual European-standard explosion-proof covers, our 55,000-liter fuel transport solution integrates:
Triple Valve System: High-performance breathing valve, vapor recovery valve, and overfill prevention valve
Rigorous Quality Assurance:
✓ Hydrostatic pressure testing (2.5x working pressure)
✓ Ultrasonic metal flaw detection
✓ 24-hour watertightness verification
99.97% Leakage Prevention: Patented seam welding technology achieves industry-leading seal performance
Certifications: ATEX, ADR, ISO 9001 compliant
Applications: Gasoline/Diesel/chemical liquid transport
Service Life: 15+ years with proper maintenance
